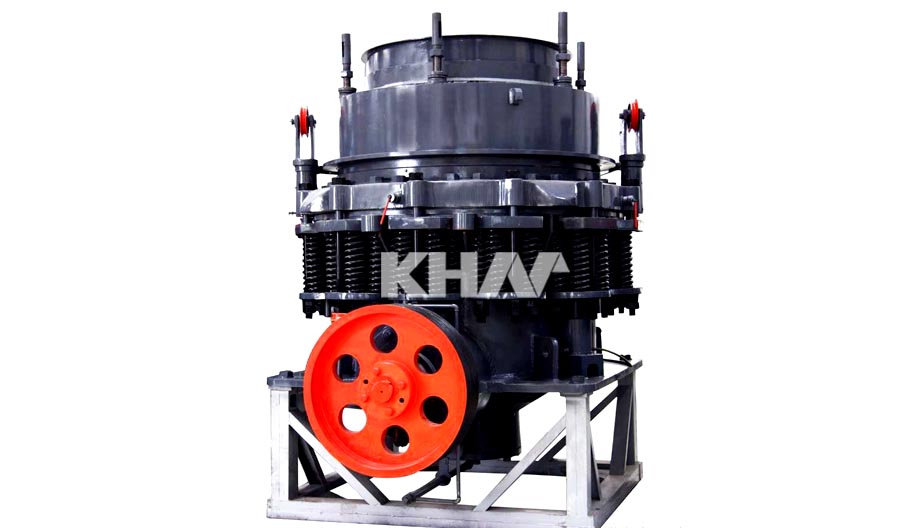

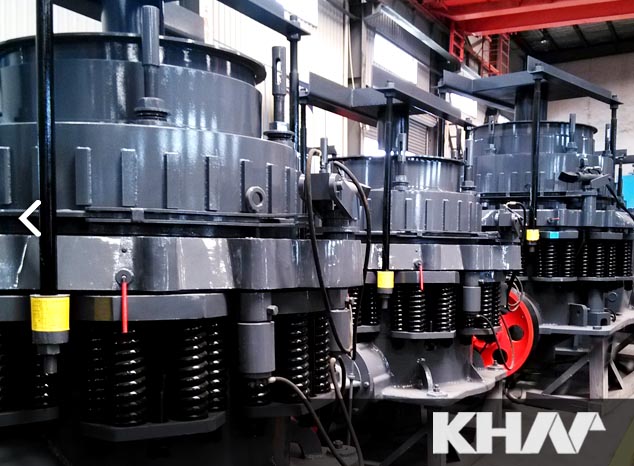

CS Series cone crushers were built for decades of reliable service. The design was as simple as possible with features that were user friendly, and craftsmen with many years of experience built the frames and components for ruggedness and durability with American steel and pride in their work. Because of this, CS Series cone crushers enjoy a worldwide reputation as rugged, durable, easy to maintain, and reliable. Now there is a conversion kit to combine all the features that made them so rugged and reliable, with more modern features to increase production and automation.

The Main Types and Function of Cone Crushers:

This series of crusher machine is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher, and the standard type is suitable for medium crushing; the medium type and the short-headed type is suitable for fine crushing, so that the customers can choose different types according specific need.

The Advantages and Benefits of Cone Crushers:

This cone crusher is suitable for crushing various kinds of ores and rocks with medium over hardness and it has the features of reliable structure, high production efficiency, convenient adjustment and economic use. It adopts two sealing means: dry oil and water to separate stone powders and lubrication grease, thus ensuring reliable work of the machine.

When some foreign matters that cannot be crushed go into the crushing chamber or the machine is overloaded due to some reasons, the spring protection system of cone crusher will increase the discharging mouth and the foreign matters will be discharged from the crushing chamber, thus realizing protection. If the foreign matters are stuck at the discharging mouth, the spring protection system will start the chamber cleaning system and continue to increase the discharging mouth, so that the foreign matters can be discharged from the crushing chamber of cone crusher. Under the function of the spring, the discharging mouth will be automatically reset and cone crusher will resume normal work. This series of cone crusher is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher and the customers can choose different type according specific needs.

Features

1. High-performance

Combining optimal designing of chamber type with applying reasonable speed and stroke to make this kind of machine does more work with the same dynamic cone diameter. Therefore, this machine is of high-performance and manufacturing capacity compared with other cone crusher of the same type. Use lminated crushing principle, to make more cubic shape materials and less needle-like materials.

2. Good products size composition

The crusher aplies for laminated crushing principle to make cubic shapes of final products stand for larger proportion. Acicular and flake shape products decrease and size fraction much more well-proportioned.

3. Good stability

If there is metal or other non-broken material come to the chamber, metal going through protection device will release it and then reset automatically. The protection device has fixed discharge opening returning point and the original discharge opening can returning back immediately after the metal goes through the crushing chamber.

4. Convenient Cleaning-up

If the crusher stops under loading condition, hydraulic cleaning system can clean up the crushing chamber quickly so that decrease the downtime.

5. High reliability.

Adopting main shaft with big diameter，heavy main frame and separate automatic Control System of thin oil lubrication system, so that it guarantees robustness and reliable operation of the crusher.

6. Easy maintenance and operation

All parts can be disassembled from top and the upper side, so that fixed cone and dynamic cone can be disassembled easily.

Under high shock and vibration environment, bronze Bearing can keep excellent bearing capacity and it is much more economic and easy for maintenance.

7. Low production costs

Due for big capacity, high reliability and easy maintenance, the production costs has been reduced greatly.

8. Widespread use

The speciality of CS Series High-efficiency Spring Cone Crusher is maximizing the performance to apply to all kinds of crushing process: from special coarse crushing to fine crushing; from fixed crushing plant to mobile crushing plant.

CS Series High-efficiency Spring Cone Crusher has different types of crushing chamber for choosing according to crushing process.

9. Separate Lubrication

Working Principle

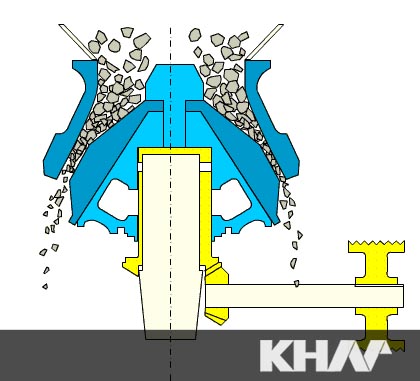

When cone crusher begins to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

When some foreign matters that cannot be crushed go into the crushing chamber or the machine is overloaded due to some reasons, the spring protection system of cone crusher will increase the discharging mouth and the foreign matters will be discharged from the crushing chamber, thus realizing protection. If the foreign matters are stuck at the discharging mouth, the spring protection system will start the chamber cleaning system and continue to increase the discharging mouth, so that the foreign matters can be discharged from the crushing chamber of cone crusher. Under the function of the spring, the discharging mouth will be automatically reset and cone crusher will resume normal work. This series of cone crusher is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher and the customers can choose different type according specific needs

Technological Data

Short Head

Note：Any change of technical data shall not be advised additional

Features

1. High-performance

Combining optimal designing of chamber type with applying reasonable speed and stroke to make this kind of machine does more work with the same dynamic cone diameter. Therefore, this machine is of high-performance and manufacturing capacity compared with other cone crusher of the same type. Use lminated crushing principle, to make more cubic shape materials and less needle-like materials.

2. Good products size composition

The crusher aplies for laminated crushing principle to make cubic shapes of final products stand for larger proportion. Acicular and flake shape products decrease and size fraction much more well-proportioned.

3. Good stability

If there is metal or other non-broken material come to the chamber, metal going through protection device will release it and then reset automatically. The protection device has fixed discharge opening returning point and the original discharge opening can returning back immediately after the metal goes through the crushing chamber.

4. Convenient Cleaning-up

If the crusher stops under loading condition, hydraulic cleaning system can clean up the crushing chamber quickly so that decrease the downtime.

5. High reliability.

Adopting main shaft with big diameter，heavy main frame and separate automatic Control System of thin oil lubrication system, so that it guarantees robustness and reliable operation of the crusher.

6. Easy maintenance and operation

All parts can be disassembled from top and the upper side, so that fixed cone and dynamic cone can be disassembled easily.

Under high shock and vibration environment, bronze Bearing can keep excellent bearing capacity and it is much more economic and easy for maintenance.

7. Low production costs

Due for big capacity, high reliability and easy maintenance, the production costs has been reduced greatly.

8. Widespread use

The speciality of CS Series High-efficiency Spring Cone Crusher is maximizing the performance to apply to all kinds of crushing process: from special coarse crushing to fine crushing; from fixed crushing plant to mobile crushing plant.

CS Series High-efficiency Spring Cone Crusher has different types of crushing chamber for choosing according to crushing process.

9. Separate Lubrication

Working Principle

When cone crusher begins to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

When some foreign matters that cannot be crushed go into the crushing chamber or the machine is overloaded due to some reasons, the spring protection system of cone crusher will increase the discharging mouth and the foreign matters will be discharged from the crushing chamber, thus realizing protection. If the foreign matters are stuck at the discharging mouth, the spring protection system will start the chamber cleaning system and continue to increase the discharging mouth, so that the foreign matters can be discharged from the crushing chamber of cone crusher. Under the function of the spring, the discharging mouth will be automatically reset and cone crusher will resume normal work. This series of cone crusher is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher and the customers can choose different type according specific needs

Technological Data

Short Head

Note：Any change of technical data shall not be advised additional
