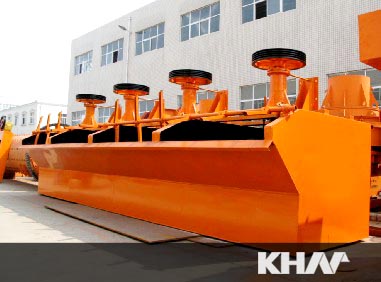

Flotation machine

Processing ability: 0.2–16 m³/min
Impeller rotation speed: 191–400 r/min
Dimensions: 700×700×750–2200×2900×1400 mm
Applied material: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral.

The Inner Structure and Application of Flotation Machine:

This flotation machine is suitable for separating non-ferrous and ferrous metals as well as non metals such as fluorite and talc.The structure of flotation machine: this machine is mainly composed of pulp chute, mixing device, air charging system, mineralized bubble discharging device and electro motor.

flotation_machine

The Working Process of Flotation Machine:

This machine runs by the triangle belt of the electrical motor driving the impellor to rotate, producing centrifugal effect which will form negative pressure, and on one hand it will absorb sufficient air in order to mix with the pulp, and on the other hand it will mix the pulp in order to mix with the reagents, and at the same time will refine the foam in order to stick the minerals onto the foam, and float on the surface of the pulp in order to become mineralization foam. The workers can adjust the height of the flashboard and control the liquid level in order to scrap the useful foam.

flotation_machine

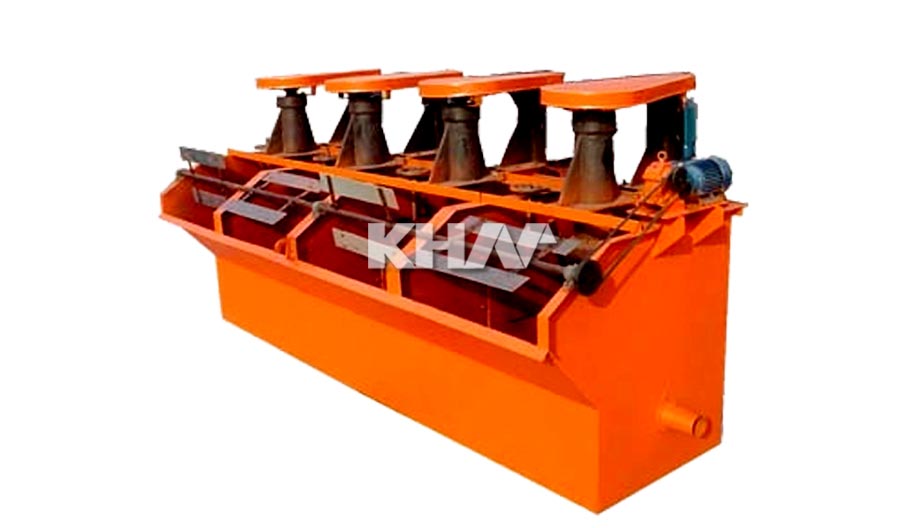

SF Flotation Machine

Model		SF0.37	SF0.7	SF1.2	SF2.8	SF4	SF8
Trough capacity（m³）		0.37	0.7	1.2	2.8	4	8
Impeller diameter（mm）		300	350	450	550	650	T60
Production capacity （m³/min）		0.2-0.4	0.3-0.9	0.6-1.2	1.5-3.5	0.5-4	4-8
Impeller rotation speed （r/min）		352	400	312	268	238	191
Motor	Model	①Y90L-4	①Y100L₂-4	①Y132M₂-6	①Y160L-6	①Y180L-6	①Y250M-8
	Model	②Y90S-4	②Y90S-4	②Y90S-4	②Y90S-4	②Y90L-4	②Y100L-6
	Power（kw）	①1.5	①3	①5.5	①11	①15	①30
	Power（kw）	②1.1	②1.1	②1.1	②1.1	②1.5	②1.5
Dimensions（mm）		700×700×750	900×820×950	1100×1100×1100	1700×1600×1150	1850×2050×1200	2200×2900×1400
Single trough weight（kg）		468	600	1373	2338	2660	4486

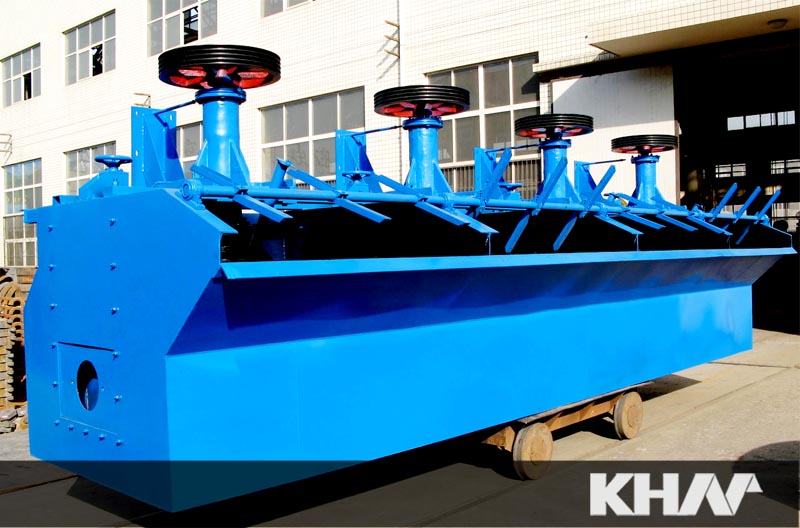

XCF Flotation Machine

Model		XCF-1	XCF-2	XCF-3	XCF-4	XCF-8	XCF-16	XCF-24	XCF-38
Chute dimensions	Length （mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Width （mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Height （mm）	1100	1250	1400	1500	1950	2400	10819	3400
Single effective weight （kg）		1154	1659	2259	2669	3868	6520	8000	16790
Effective cubage （m³）		1	2	3	4	8	16	24	38
Production capacity(calculated by slurry volume) (m³/min)		0.2-1	0.4-2	0.6-3	1.2-4	3-8	4-16	4-24	10-38
Main shaft motor	Model	Y132M2-6	Y160M-6	Y160L-6	Y180L-6	Y200L2-6	Y280S-8	Y280S-8	Y280S-6
Main shaft motor	Power （kw）	5.5	7.5	11	15	22	37	37	45
Impeller
	Rotation speed (r/min)	960	970	970	970	970	740	740	980
	Diameter （mm）	400	460	540	620	720	860	950	-
	Height （mm）	155	175	207	247	321	349	-	-
	Rotation speed (r/min)	358	331	266	215	185	160	153	-
	Circular velocity (m/s)	7.5	7.5	7.5	7	6.97	7.6	7.6	7.4
Loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power （kw）	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotation speed (r/min)	1400	1400	1400	1400	1400	1400	1400	1400
Loam board	Rotation speed (r/min)	18	18	16	16	16	16	16	16
Loam board	Diameter （mm）	500	500	580	600	600	700	700	700
Wind pressure of fan （kpa）		≥12.6	≥14.7	≥19.8	≥19.8	≥21.6	≥25.5	≥30.4	≥34.
Max.air injection amount (m³/㎡·min)		2	2	2	2	2	2	2	2

XJ Flotation Machine

Model	Effective capacity(m³)	capacity	Diameter of impeller	Revolution of impeller	Motor power KW		Weight of 4 cell cell
Model	Effective capacity(m³)	capacity	Diameter of impeller	Revolution of impeller	for agitating	for scraper	Weight of 4 cell cell
XJ1	0.13	0.05~0.6	200	600	Y90L-4	1.5	0.55
XJ2	0.23	0.12~0.28	250	504	Y100L2-4	1.5	0.55
XJ3	0.35	0.18~0.4	300	483	Y112L-4	1.5	0.6
XJ6	0.62	0.3~0.9	350	400	Y132S-6	3	1.1
XJ11	1.1	0.6~1.6	500	330	Y132M2-6	5.5	1.1
XJ28	2.8	1.5~3.5	600	280	Y160L-6	11	1.1
XJ58	5.8	5~7	750	240	Y200L2-6	22	2.2

Specifications of XJQ mechanical agitating floation cell with auto air suction:

Model	Effectivevolume(m3)	Capacity(m3/min)	D. of impeller(mm)	r.p.m Impeller revolution	Motor power for agitation(kw)	Motor power for scraper(kw)	W. of single tank(kg)
XJQ-40	4	2-5	400	290315	11	1.1	3100
XJQ-80	8	4.2-10	560	205225	22	1.1	5146
XJQ-160	16	8-20	700	170180	30	1.5	9314
XJQ-280	28	14-35	760	166185	55	1.5	15940

Specifications of SF mechanical agitating floation cell with auto air suction:

Model	Effectivevolume(m3)	handling capacity (m3/min)	impeller diameter (mm)	impeller revolutions (r/min)	power(kw)		chute weight(kg)
Model	Effectivevolume(m3)	handling capacity (m3/min)	impeller diameter (mm)	impeller revolutions (r/min)	for stirring	for scraper	chute weight(kg)
SF-0.37	0.37	0.2-0.4	300	352-442	1.5	0.55	936
SF-0.7	0.7	0.3-1.0	350	336	3	1.1	1882
SF-1.2	1.2	0.6-1.6	450	312	5.5	1.1	2745
SF-2.8	2.8	1.5-3.5	550	268	11	1.5	4240
SF-4	4	2-4	650	235	15	1.5	5165
SF-8	8	4-8	760	191	30	1.5	8258

Specifications of SF mechanical agitating floation cell with auto air suction:

Model	Effective Capacity (m3)	Capacity (m3/min)	Diameter of mpeller (mm)	Revolution of impeller (r/min)	Motor power(kw)		Weight of cell (kg)	Remarks
Model	Effective Capacity (m3)	Capacity (m3/min)	Diameter of mpeller (mm)	Revolution of impeller (r/min)	For agitating	For scraper	Weight of cell (kg)	Remarks
JJF-4	4	2-4	410	305	11	1.5	2303	Auto air suction,to be arranged with gradient,and may be combined with model SF.
JJF-5	5	2-6	410	305	11	1.5	2416
JJF-8	8	4-8	540	233	22	1.5	4500
JJF-10	10	5-10	540	233	22	1.5	4820
JJF-20	20	5-20	700	180	37	1.5	8500

Flotation machine

Processing ability: 0.2–16 m³/min Impeller rotation speed: 191–400 r/min Dimensions: 700×700×750–2200×2900×1400 mm Applied material: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral.
