your curent location : home > product > Double spiral classifier Double spiral classifier

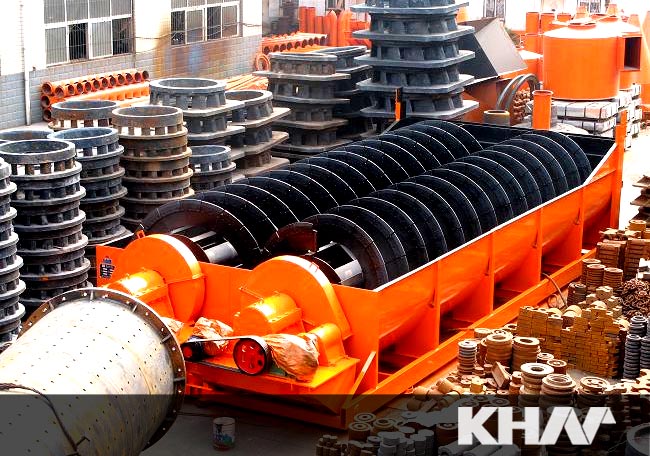

Double spiral classifier

Type: Metal ore beneficiation equipment
Processed Materials: The spiral classifier is widely used to combine the ball grinder into closed circulation for ore-sand separation in the ore separation plant.
Applications:Widely used in combine with ball grinder into closed circulation for ore-sand separation in the ore separation plant; classify ore sand and fine sludge in gravity ore separation plant; classify the grain of ore pulp at the metal ore separation process; and remove sludge/water at the ore separation process.

The Inner Structure and Features of Spiral Classifier:

The spiral classifiers consists of cell body, speed reducer ,motor power ,central shaft, spiral scatters, support parts. This machine has features of simple structure, reliable and convenient operation, etc. It is also used together with impact crushers and vibrating feeders.

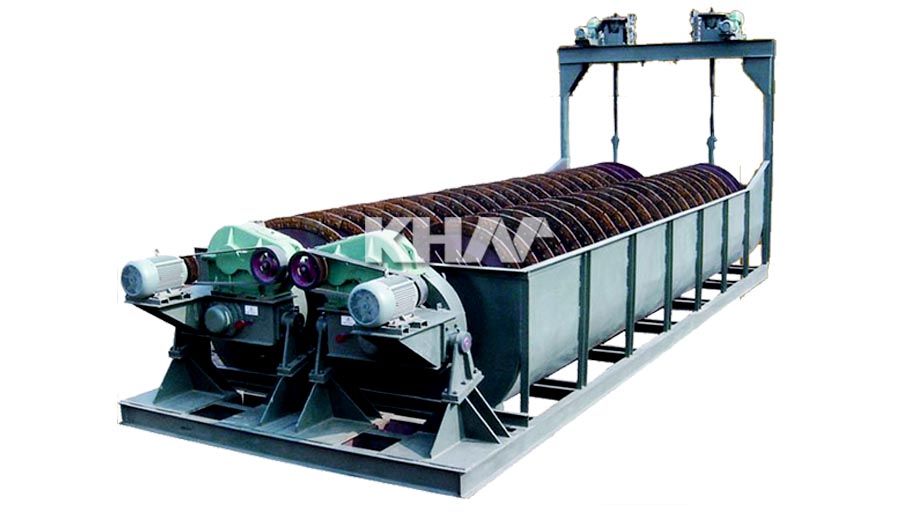

spiral_classifer

The Application and Function of Spiral Classifier:

Spiral Classifier is widely used to control material size from Ball Mill in the beneficiation process, separate mineral sand and fine mud in the gravity concentration, and clean mud and water in washing mineral process.

Model	Spiral diameter (mm)	Spiral rotation speed (r/min)	Trough length (mm ≤)	Motor power（kw≤）		Dimensions（L×W×H）（mm≤）			Machine weight （t）
Model	Spiral diameter (mm)	Spiral rotation speed (r/min)	Trough length (mm ≤)	For driving	For lifting	Length	Width	Height	≤
FG-3	300	12-30	3000	1.1	----	3850	490	1140	0.7
FG-5	500	8-12.5	4500	1.1	----	5430	680	1480	1.9
FG-7	750	6-10	5500	3	----	6720	980	1820	3.1
FG-10	1000	5-8	6500	5.5	----	7590	1240	2380	4.9
FC-10	1000	5-8	8400	7.5	----	9600	1240	2680	6.2
FG-12	1200	4-6	6500	7.5	2.2	8180	1570	3110	8.5
FC-12			8400	7.5	2.2	10370	1540	3920	11.0
2FG-12			6500	15	4.4	8230	2790	3110	15.8
2FC-12			8400	15	4.4	10370	2790	3920	17.6
FG-15	1500	4-6	8300	7.5	2.2	10410	1880	4080	12.5
FC-15			10500	7.5	2.2	12670	1820	4890	16.8
2FG-15			8300	15	4.4	10410	3390	4080	22.1
2FC-15			10500	15	4.4	12670	3370	4890	30.7
FG-20	2000	3.6-5.5	8400	11-15	3	10790	2530	4490	20.5
FC-20			12900	11-15	3	15610	2530	5340	28.5
2FG-20			8400	22-30	6	11000	4600	4490	35.5
2FC-20			12900	22-30	6	15760	4600	5640	48.7
FG-24	2400	3.67	9130	15	3	11650	2910	4970	26.8
FC-24			14130	18.5	4	16580	2930	7190	41.0
2FG-24			9130	30	6	12710	5430	5690	45.8
2FC-24			14130	37	8	17710	5430	8000	67.9
2FG-30	3000	3.2	12500	40	8	16020	6640	6350	73.0
2FC-30	3000	3.2	14300	---	---	17091	---	8680	84.8
