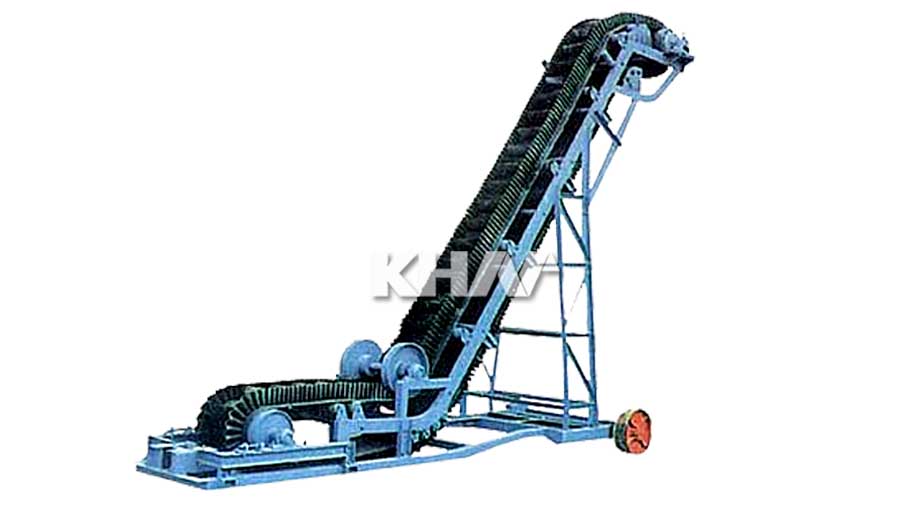

High Inclination Angle Belt

Type:Professional Coal Material Transfer Mine Conveyor Belt With High Inclination Angle / Waved Guard Side
Detail:Reliable Quality Mining Belt Conveyor With High Inclination Angle And Waved Guard Side

Description:

Using corrugate belt instead of normal belt is the most distinguishing character of this conveyor. It has large conveying angle, and the conveying obliquity is 0° -90°, it takes mall area, saves the investment and civil charges.

Applications:

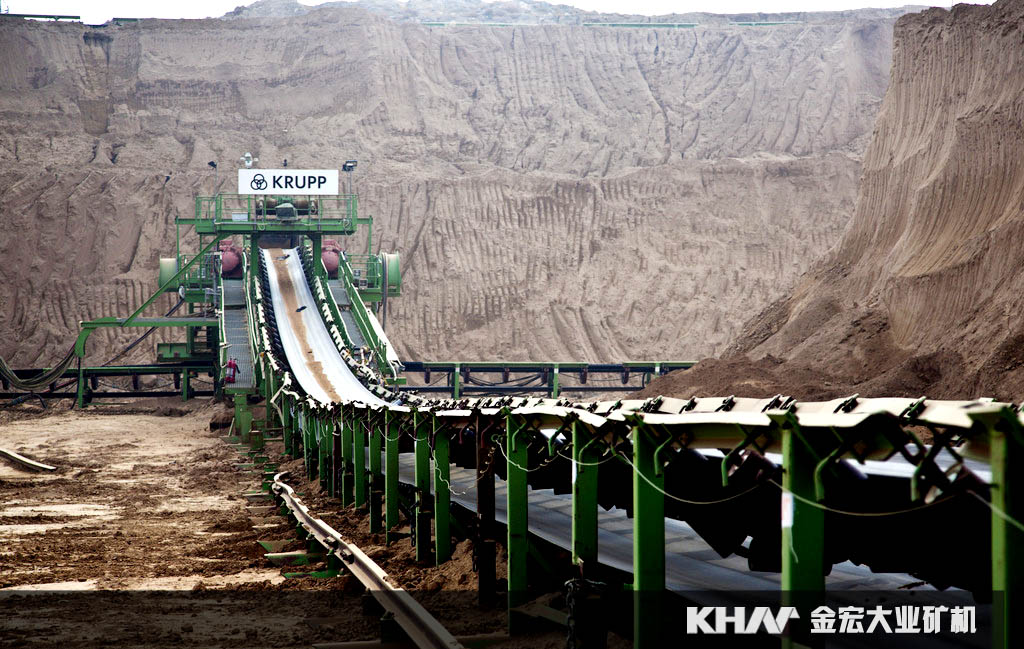

It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.

Specifications :

item	Width of the belt (mm)	Height of guard side (mm)	Conveying inclination angel 30°	Conveying inclination angel 45°	Conveying inclination angel 60°	Conveying inclination angel 90°
model	Width of the belt (mm)	Height of guard side (mm)	Conveying amount(m³/h)	Conveying amount (m³/h)	Conveying amount (m³/h)	Conveying amount (m³/h)
DJ50-8	500	80	46	35	25	13
DJ50-12	500	120	71	57	40	21
DJ65-12	650	120	104	83	58	31
DJ65-16	650	160	120	97	69	37
DJ80-12	800	120	128	102	72	38
DJ80-16		160	157	127	90	48
DJ80-20		200	195	157	112	60
DJ80-24		240	235	195	142	76
DJ100-12	1000	120	172	137	96	51
DJ100-16		160	216	157	124	66
DJ100-20		200	267	216	153	82
DJ100-24		240	327	271	197	106
DJ120-16	1200	160	275	222	158	85
DJ120-20		200	331	267	190	102
DJ120-24		240	419	347	253	136
DJ120-30		300	466	384	278	149
DJ140-20	1400	200	395	318	226	121
DL140-24		240	500	414	302	162
DJ140-30		300	564	465	337	180
DJ140-40		400	794	680	524	281
