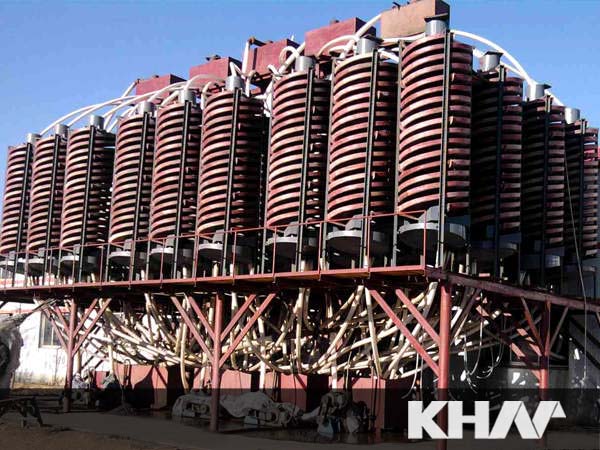

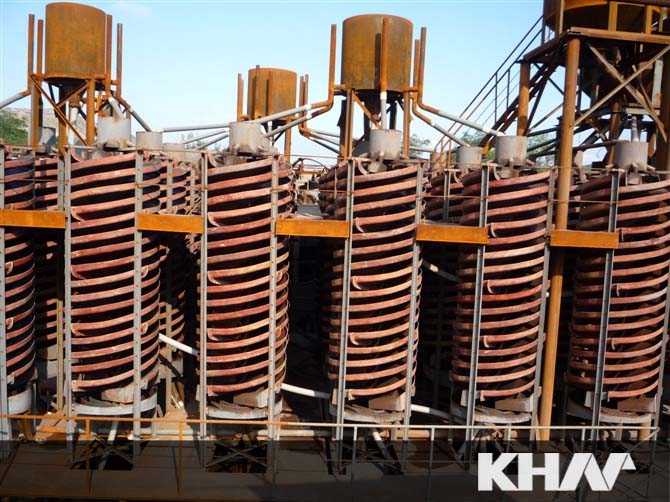

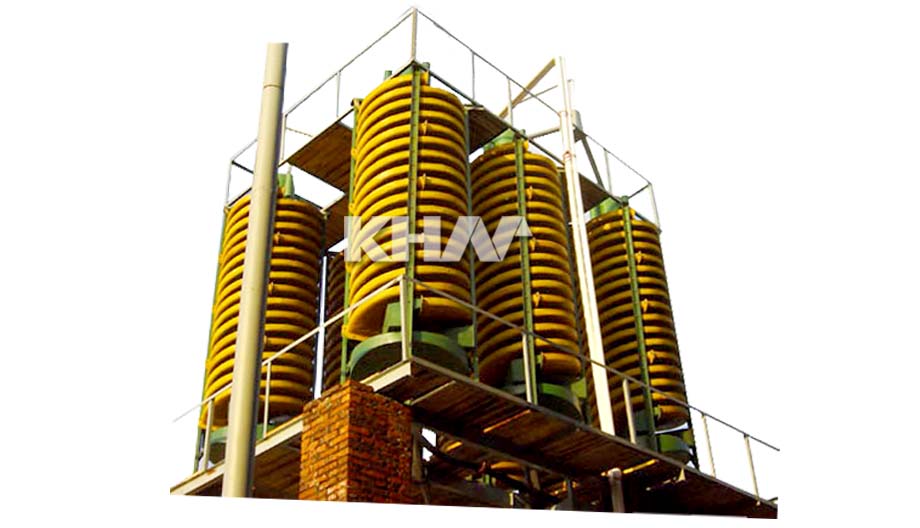

The Handling Materials and Application of Spiral Chute:

This equipment is suitable for separating non-ferrous metals, rare metals and non-metal ores whose granularity is 0.3--0.02 mm such as iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum and niobium ore. It is the ideal equipment for mining and ore beneficiation and especially for the mining of sand ore in the coast, riverside, beach and brook.

The Advantages and Benefits of Spiral Chute:

This machine has the advantages of stable separation, easy control; big allowed change ranges of the ore density, high concentration ratio, high recovery, small coverage size, low water consumption, simple structure, no need for power, big processing capacity, easy installation, convenient operation and small investment and high return.

This product has the features of reasonable structure, simple installation, small floor space, simple and easy operation, stable separation, clear classification, big processing capacity, high efficiency, high dressing and concentration ratio, high recovery and reliable operation, and in addition, it has light weight and low noise, and is damp-proof, rust-proof and corrosion resisting and well-adapted to the ore feeding amount, and the fluctuation of the density, granularity and taste of the minerals.

Erect the spiral chute, calibrate the perpendicular line and fix it in a proper position with iron structure or wood. Send the mineral sand with the sand pump to the two feeding mouth on the top of the spiral chute, add make-up water to adjust the density of the ore pulp, and the ore pulp will naturally rotationally flow down and produce an inertial centrifugal force in the rotary slant flow. The gravity and the centrifugal force will separate the ores and sand according to the proportion, granularity and shape of the ore sand, and the ore concentrate will flow into the concentrate funnel and be discharged with the pipe and the tailings will flow to the tailing funnel and be discharged to the sand tank with the pipe and drained by the sand pump to complete the whole separation process.
