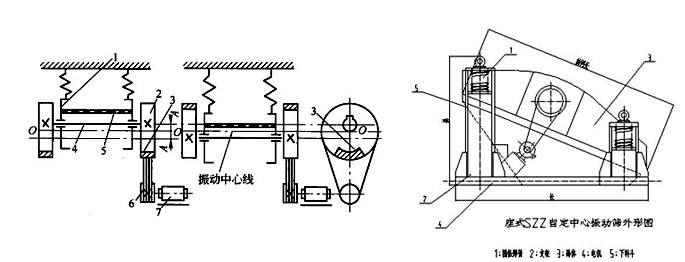

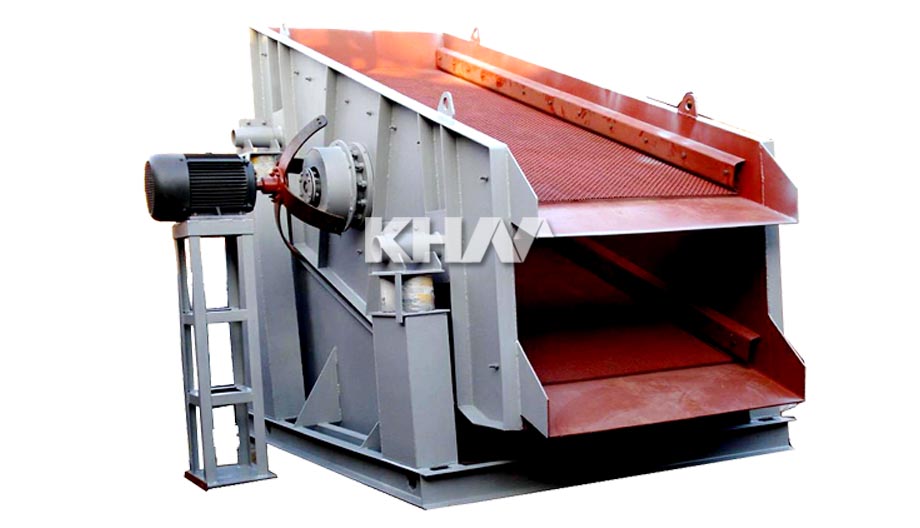

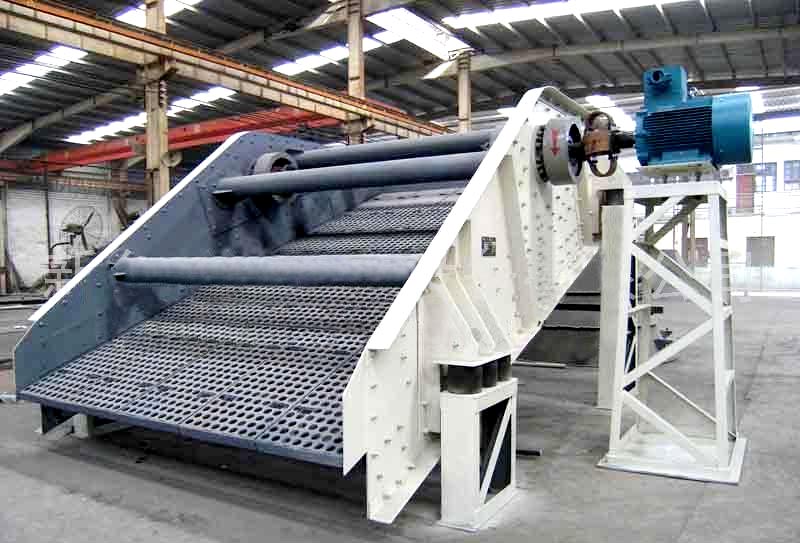

Auto Centering Vibrating Screen
Processing capacity: 8-800m³/h
Vibrating power: 800-970r/min
Max. feeding size: 400mm
Screen size: 4-100mm
Motor power: 5.5-22×2kw
The vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad. Now they are installed in about 130 countries of the global market.
Vibrating Screen is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. For material quality of screen mesh is changeable, the application is quite extensive.
Long flowing line many screening specifications
Strong violent vibrating force High screening efficiency
Small vibrating noises Firm and durable construction
Convenient maintenance and safe operation
|
Model
|
Screen Size (mm)
|
Layers
|
Mesh Size (mm)
|
Feeding Size (mm)
|
Capacity (t/h)
|
Power (kw)
|
Motor Model
|
REV (r/min)
|
Amplitude (mm)
|
Angle (℃)
|
Machine Size (mm)
|
|
2YA1237
|
1200×3700
|
2
|
3-50
|
≤200
|
7.5-80
|
4-15
|
Y160L-4/15
|
970
|
8
|
20
|
4010×2250×2660
|
|
3YA1237
|
1200×3700
|
3
|
3-50
|
≤200
|
7.5-80
|
4-15
|
Y160L-4/15
|
970
|
8
|
20
|
4010×2250×3140
|
|
2YA1548
|
1500×4800
|
2
|
5-50
|
≤400
|
50-208
|
4-15
|
Y160L-4/15
|
970
|
8
|
20
|
5120×2590×3060
|
|
3YA1548
|
1500×4800
|
3
|
5-50
|
≤400
|
50-250
|
4-15
|
Y160L-4/15
|
970
|
8
|
20
|
5120×2590×3540
|
|
2YA1848
|
1800×4800
|
2
|
5-80
|
≤400
|
50-260
|
4-18.5
|
Y180M-4/18.5
|
970
|
8
|
20
|
5120×2950×3060
|
|
3YA1848
|
1800×4800
|
3
|
5-80
|
≤400
|
50-300
|
4-18.5
|
Y180M-4/18.5
|
970
|
8
|
20
|
5120×2950×3540
|
|
2YA1860
|
1800×6000
|
2
|
5-80
|
≤400
|
50-300
|
4-18.5
|
Y180M-4/18.5
|
970
|
8
|
20
|
6260×2950×3480
|
|
3YA1860
|
1800×6000
|
3
|
5-80
|
≤400
|
50-350
|
4-22
|
Y180L-4/22
|
970
|
8
|
20
|
6260×2990×3960
|
|
2YA2160
|
2100×6000
|
2
|
5-150
|
≤400
|
100-500
|
4-22
|
Y180L-4/22
|
730
|
6-8
|
20
|
6270×3410×3670
|
|
3YA2160
|
2100×6000
|
3
|
5-100
|
≤400
|
100-500
|
4-30
|
Y200L-4/30
|
730
|
6-8
|
20
|
6270×3470×4100
|
|
2YA2460
|
2400×6000
|
2
|
5-150
|
≤400
|
150-700
|
4-37
|
Y225S-4/37
|
730
|
6-8
|
20
|
6270×3770×3610
|
|
3YA2460
|
2400×6000
|
3
|
5-150
|
≤400
|
150-700
|
4-37
|
Y225S-4/37
|
730
|
6-8
|
20
|
6270×3790×4100
|
