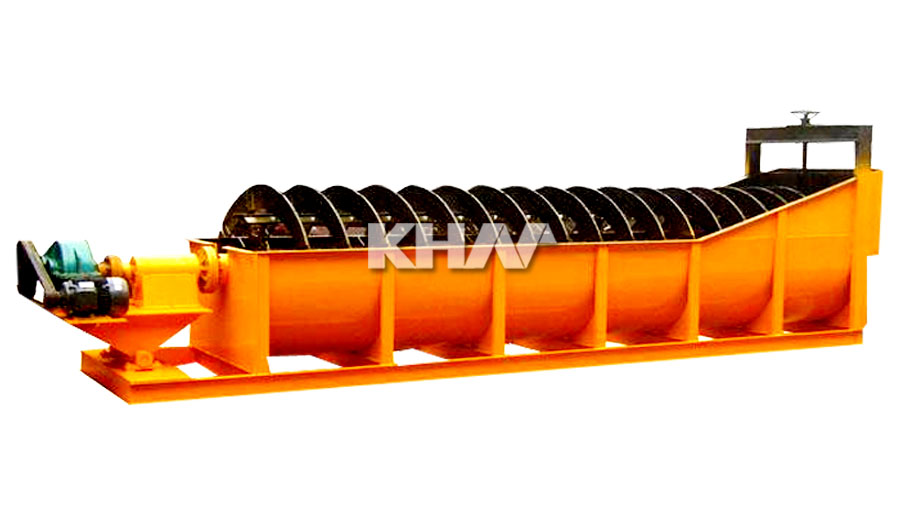

Submerged spiral classifier
Type:Classification equipment
Capacity:50～1410 t/d
Product improvement:An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.
The Handling Materials and Function of Spiral Separator:

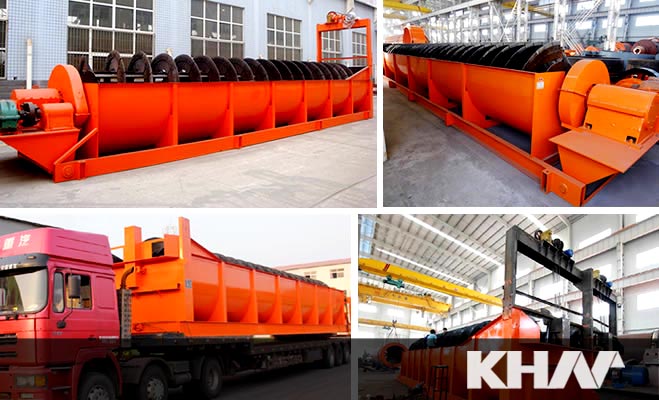

Submerged spiral classifier is a kind of Classification equipments---the spiral of overflow end is completely immersed below liquid level.An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.
.jpg)
The Advantages and Beneficiation of Spiral Separator:
It's applied to iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm.
The Advantages and Beneficiation of Spiral Separator:
It's applied to iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm.
Fine ore pulps are fed into water tank through feeding opening located in the center of settling zone. Beneath the inclined water tank is the ore pulp classification zone where ore pulps are stirred by low-speeded impellers. Fine ore particles are lifted up and then spilled out the overflow opening; coarse ore particles precipitate down to tank bottom and are discharged via discharge opening.
Please contact us if you want to choose the most suitable submerged spiral classifier, and our experts will give you advice
|
Type
|
Spec.
|
Spiral
Rotation
Speed
（r.p.m）
|
Sand
Return
Capacity
（t/d）
|
Overflow
Capacity
（t/d）
|
Diameter
of
Spiral
（mm）
|
Length
of
Flume
（mm）
|
Model
of
Drive
Motor
|
Power
of
Drive
Motor
（kw）
|
Model
of
Lifting
Motor
|
Power
of
Lifting
Motor
（kw）
|
Weight
（kg）
|
|
Submerged Single Spiral
|
FLC-1000
|
2.5,3.5,5,7.4
|
160-700
|
85
|
1000
|
6500
|
Y132M2-6
|
5.5
|
Manual
|
—
|
5195
|
|
FLC-1200
|
5,6,7
|
1150-1640
|
120
|
1200
|
8400
|
Y160M-6
|
7.5
|
Y90L-4
|
1.5
|
9583
|
|
FLC-1500
|
2.5,4,6
|
1140-2740
|
185
|
1500
|
10500
|
Y160L-6
|
7.5
|
Y100L1-4
|
2.2
|
14226
|
|
FLC-2000
|
3.6,5.5
|
3890-5940
|
400
|
2000
|
13000
|
Y160M-6
|
11
|
Y100L2-4
|
3
|
27753
|
|
FLC-2000
|
3.6,5.5
|
3890-5940
|
400
|
2000
|
13000
|
Y160L-4
|
15
|
Y100L2-4
|
3
|
27753
|
|
FLC-2400
|
3.64
|
6800
|
455
|
2400
|
14130
|
Y200L1-6
|
18.5
|
Y112M-4
|
4
|
32467
|
|
FLC-3000
|
3.2
|
11650
|
705
|
3000
|
14300
|
Y200L-4
|
30
|
Y112M-4
|
4
|
43500
|
|
Submerged Double Spiral
|
2FLC-1200
|
3.8,6
|
1770-2800
|
240
|
1200
|
8400
|
Y160M-6
|
7.5×2
|
Y100L1-4
|
2.2×2
|
19610
|
|
2FLC-1500
|
2.5,4,6
|
2240-5360
|
370
|
1500
|
10500
|
Y160M-6
|
7.5×2
|
Y100L1-4
|
2.2×2
|
27450
|
|
2FLC-2000
|
3.6,5.5
|
7780-11880
|
640
|
2000
|
12900
|
Y160L-6/4
|
2×11,2×15
|
Y100L2-4
|
3.0×2
|
50621
|
|
2FLC-2000
|
3.6,5.5
|
7780-11880
|
640
|
2000
|
12900
|
Y200L2-6
|
22
|
Y100L2-4
|
3.0×2
|
50621
|
|
2FLC-2000
|
3.6,5.5
|
7780-11880
|
640
|
2000
|
12900
|
Y200L-4
|
30
|
Y100L2-4
|
3.0×2
|
50621
|
|
2FLC-2400
|
3.67
|
13700
|
910
|
2400
|
14130
|
Y225S-4
|
37
|
Y112M-4
|
4.0×2
|
65283
|
|
2FLC-3000
|
3.2
|
23300
|
1410
|
3000
|
14300
|
Y225M-4
|
45
|
Y112M-4
|
4.0×2
|
849
|
