The Handling Materials and Application of Raymond Mill:

Raymond mill is widely used for grinding non-flammable and non-explosive materials whose Moh’s hardness is below 9.3 and humidity less than 6% such as barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermal insulation material in mine, metallurgy, chemistry and building industry.

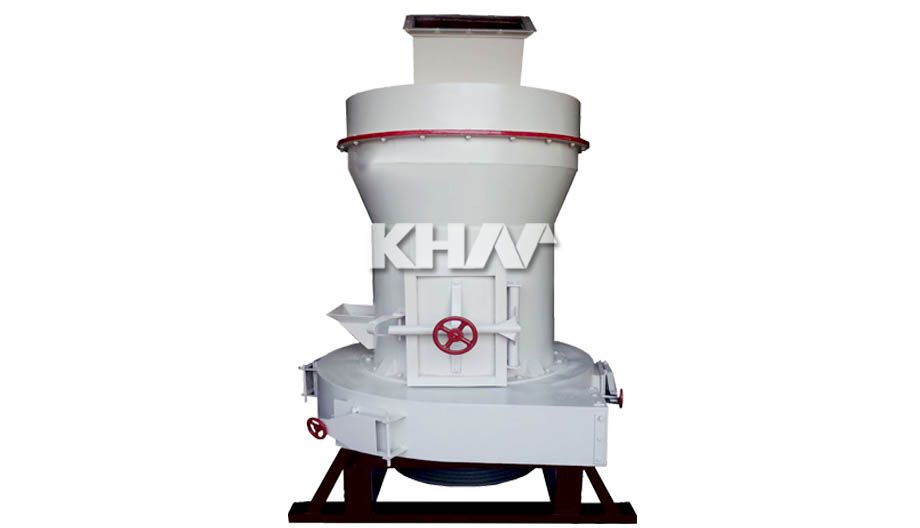

The Main Structure of Raymond Mill:

This machine is mainly composed of main engine, analytical engine, air blower, clone separator for final products, clone separator for micro powders and air pipe, and the main engine is composed of rack, inlet air volute, relieving tool, grinding roll, grinding ring and cover piece.

Compared with ball mill, this equipment has high grinding efficiency, low electricity consumption and small coverage size and one-time investment. The grinding roll tightly presses on the grinding ring under centrifugal force; for this reason, when the grinding roll and the grinding ring are abraded, the output and the fineness of the final products are not influenced. The changing cycle of the grinding roll and the grinding ring is long. The air separation flow of this machine cyclically flows inside the air blower, mill case, cyclone separator and air blower, so that compared with high-speed centrifugal crusher, this machine has little powder dust and the operational workshop is clean.

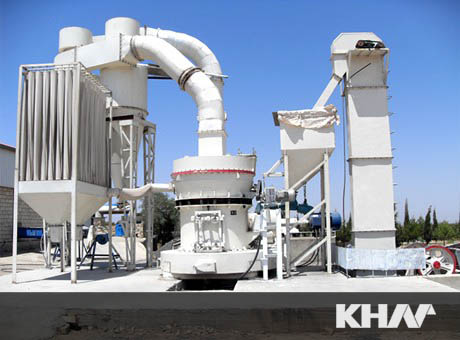

1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.

2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.

3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.

4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant. 5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

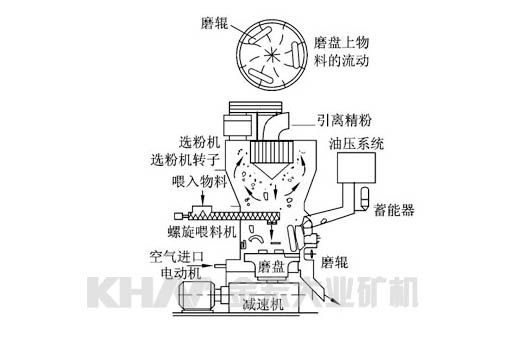

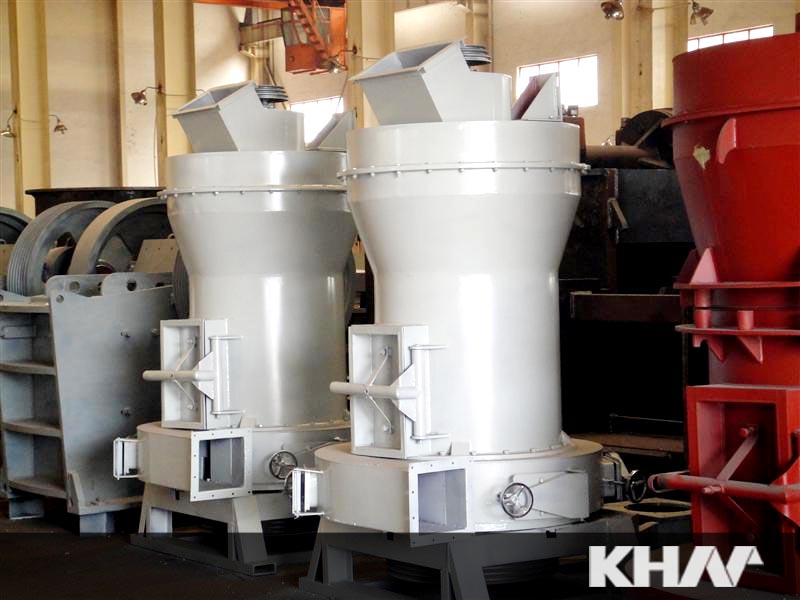

When Raymond mill works, the materials that need to be crushed are fed into the machine through the feeding hopper. The grinding roll that hangs on the main engine will rotate around the vertical axis and rotates around itself. Due to the centrifugal force produced in the rotating process, the grinding roll will swings outward and tightly press onto the grinding ring to make the relieving tool scoop up the materials and send them to the space between the grinding roll and the grinding ring, and the materials will be crushed due to the rolling and grinding of the grinding roll.

• Model			3R2115	3R2615	3R2715	3R3016	4R3216
  Roller	Number		3	3	3	3	4
  	Diameter (mm)		210	260	270	300	320
  	Height (mm)		150	150	150	160	160
  Ring	Inside diameter (mm)		630	780	830	880	970
  	Height (mm)		150	150	150	160	160
  Maximum feed size (mm)			15	15-20	15-20	15-20	20-25
  Output size (mm)			0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165
  Power of main frame (kW)			15	18.5	22	30	37
  Fineness of final product (mm)	0.165	capacity (t/h)	1.2-1.8	1.8-2.5	2.3-2.8	2.6-3.2	3.2-4.5
  	0.075		0.6-1.2	1.2-1.8	1.8-2.3	1.9-2.6	2.4-3.1
  	0.044		0.6-1.0	0.8-1.2	0.9-1.7	1-1.9	1.8-2.5



  Note：Any change of technical data shall not be advised additionally.
