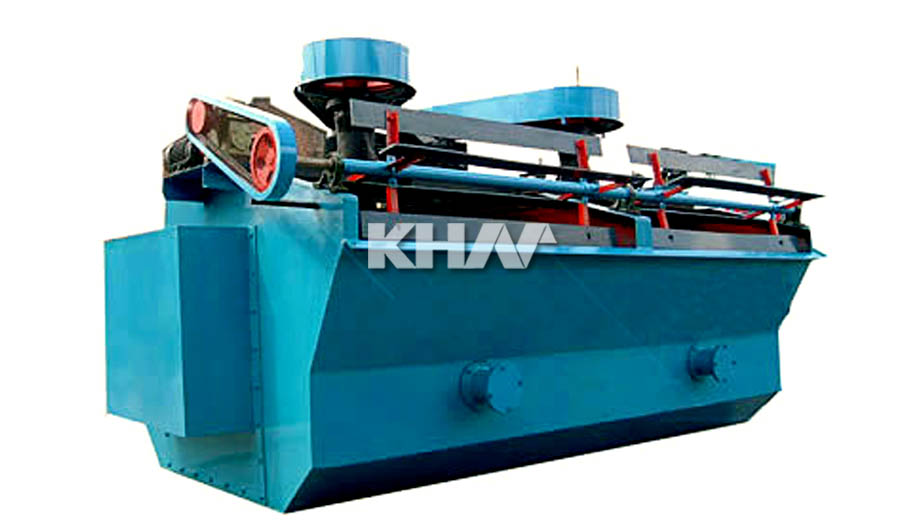

XJB bar flotation cell — Product application

Flotation cell is widely used for roughing, concentrating and reverse flotation of nonferrous metals that include copper, lead, zinc, nickel and molybdenum, ferrous metal and nonmetallic minerals.

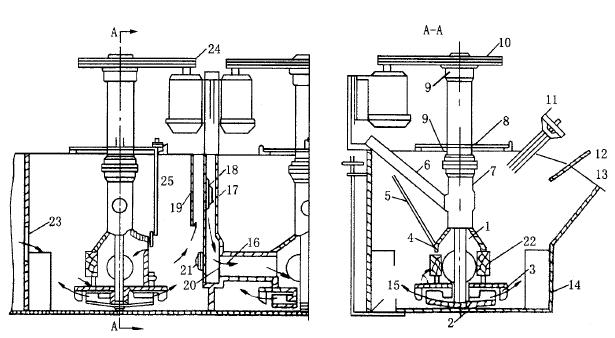

The Inner Structure and Function of Flotation Cell:

This type of flotation cell  is formed by a U-shaped trough, hollow shaft inflation and suspension stator and especially a new type impeller which is a cone impeller whose blades lean backwards just like a centrifugal pump wheel with height ratio rotary speed.

The Advantages and Benefits of Flotation Cell:

Flotation cell has the advantages of big blending quantity, small pressure, low energy consumption and simple structure. Inside the impeller chamber, there is a cylinderical air distributor with many holes so that the air will evenly distribute on the major parts of the impeller blades in advance, thus providing relatively big contact interface for pulp and air

.

Uniform mixing of slurry, air and sedimentation rate

Higher flotation speed4.Easy to restart after stopping

Product advantages:Strong agitation force

nice moving trace of slurry

XJB bar flotation cell — Product principle

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
